VOE14512786 14509428 14633636 Swing Motor Parts For EC330B EC360B EC300D

Guangzhou Menzeh Machinery Parts Co., Ltd.
Contact Now

VOE14512786 14509428 14633636 Swing Motor Parts For EC330B EC360B EC300D

  • 1
  • 2

Brand Name : MENZEH GEARS

Model Number : VOE14512786 14509428 14633636

Certification : CE

Place of Origin : GUANGZHOU CHINA

MOQ : 1 pcs

Price : Negotiated

Payment Terms : Western Union, T/T, L/C, ALIPAY

Supply Ability : 200 pcs per Day

Delivery Time : 1-3 working Days

Packaging Details : Wooden Case, Box

Part Name : Swing Motor

Part Number : VOE14512786 14509428 14633636

Used For : EC330B EC360B EC300D

Condiction : All New, OEM, Original

Warrenty : 3-12 months

Shipping : Express/ SEA/ AIR Shipping

Port : Huangpu, Guangzhou

High Light : Swing Motor, Excavator Repaired Parts

Weight : 60kgs with Packing

Contact Now

VOE14512786 14509428 14633636 Swing Motor Excavator Parts EC330B EC360B EC300D

Part Number VOE14512786 14509428 14633636
Part Name Swing Motor
Modle EC330B EC360B EC300D
Delivery Time 1-3 Days After Payment
After Warrenty Service Video Technique or Free Parts
Warrfenty 3-12 Months

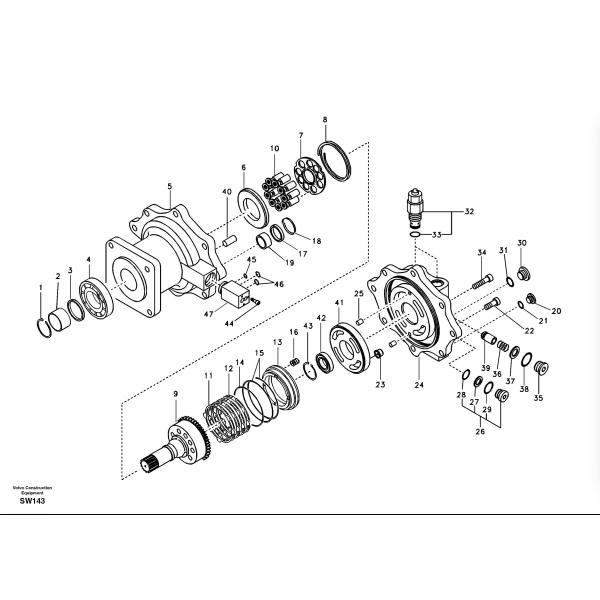

Pos. Part No Qty Parts name Comments
  VOE14512786 [1] Swing motor
1. SA8230-01090 [1] Snap ring
2. SA8230-04460 [1] Ring
3. SA8230-00910 [1] Sealing ring
4. SA7177-03140 [1] Roller bearing
5. VOE14512779 [1] Housing
6. SA8230-04390 [1] Plate
7. SA8230-04400 [1] Plate
8. SA8230-04300 [1] Spring
9. SA8230-04060 [1] Cylinder
10. VOE14512780 [1] Piston 9pcs
11. SA8230-22940 [4] Friction plate
12. SA8230-22950 [4] Plate
13. SA8230-04090 [1] Piston
14. SA8230-00260 [1] O-ring
15. SA8230-00270 [2] O-ring
16. SA8230-04270 [19] Spring
17. SA8230-00900 [4] Seal
18. SA8230-04310 [4] Spring
19. SA8230-04350 [4] Bushing
20. SA8230-01160 [2] Cap
21. VOE983502 [2] O-ring
22. SA8230-00630 [1] Bolt
23. SA8230-04120 [2] Piston
24. VOE14512781 [1] Cover
25. SA8230-00560 [2] Pin
26. VOE14508590 [2] Valve
27. VOE14625246 [1] Ring
28. VOE983503 [2] O-ring
29. VOE990557 [3] O-ring
30. SA8230-37030 [1] Cap
31. VOE990557 [1] O-ring
32. VOE14512782 [2] Relief valve
33. VOE983529 [1] O-ring
34. VOE984135 [7] Hex. socket screw
35. SA8230-11610 [2] Cap
36. VOE14596241 [2] Spring
37. SA9566-10260 [2] Back-up ring
38. VOE983525 [2] O-ring
39. SA8230-11110 [2] Non-return valve
40. SA9324-21317 [1] Pin
41. SA8230-04020 [1] Plate
42. SA8230-00840 [1] Needle bearing
43. SA8230-01100 [1] Snap ring
44. SA8230-00610 [3] Bolt
45. SA8230-00160 [1] O-ring
46. SA8230-00190 [2] O-ring
47. SA8230-04220 [1] Manifold
100. VOE14512788 [1] Sealing kit

VOE14512786 14509428 14633636 Swing Motor Parts For EC330B EC360B EC300D

VOE14512786 14509428 14633636 Swing Motor Parts For EC330B EC360B EC300D

VOE14512786 14509428 14633636 Swing Motor Parts For EC330B EC360B EC300D

VOE14512786 14509428 14633636 Swing Motor Parts For EC330B EC360B EC300D

VOE14512786 14509428 14633636 Swing Motor Parts For EC330B EC360B EC300D

VOE14512786 14509428 14633636 Swing Motor Parts For EC330B EC360B EC300D

FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
